HWA YEH

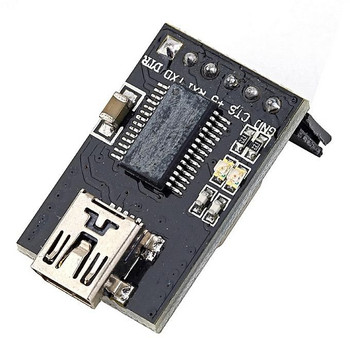

FT232RL FTDI USB To TTL Module
- SKU:
- PEBBB96
- Weight:
- 0.03 KGS
- Shipping:
- Calculated at Checkout
Description
Feature:
Chip: FT232RL
Draw out all signal port of FT232RL chip
RXD / TXD transceiver communication indicator
USB power supply, can choose 5V or 3.3V, set by jumper
With over current protection, using 500mA self-restore fuse
Pin definition: DTR, RXD, TX, VCC, CTS, GND
Pitch: 2.54mm
Size: 36 x 18mm (L x W)
Interface: Mini USB
Note:
This chip is generic, do not have EEPROM, can not invert the signals.
Package included:
1 x FT232RL USB to serial converter module
Related Products
6Pin Module USB 2.0 To TTL
Hesai
KES400.00
1.PCB size: 26.5mm * 15.6mm
2.PCB Color: Black
3. Weight: 4g
4. Using the new chip CP2102
5. with resettable fuse. In the event of accidental short-circuit can effectively protect your device and...

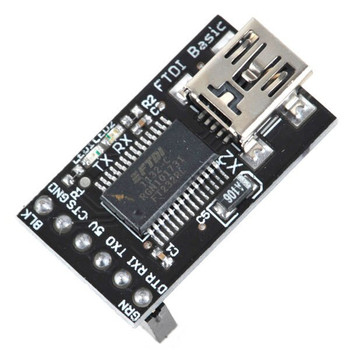

FT232RL FTDI USB MWC to TTL 6Pin Module
