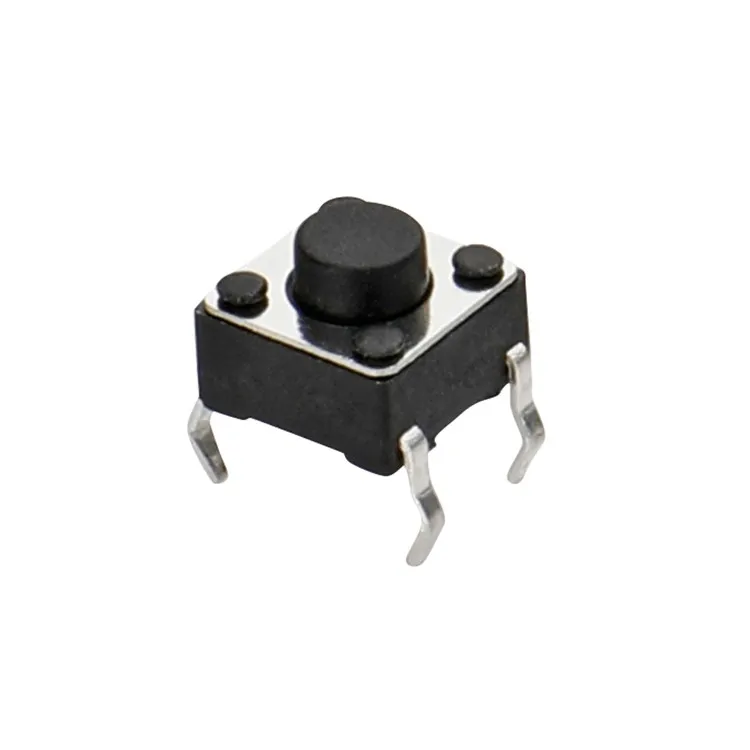

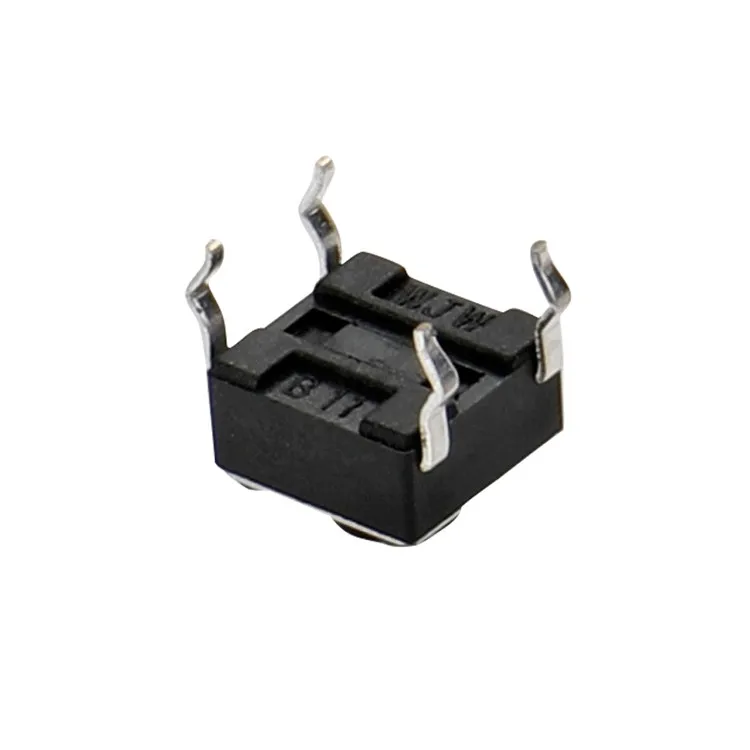

Tactile Tact PushButton 6x6x5mm

Descriptions:

Feature momentary contact, 4 pins, round black push button, through hole mounting, 6 x 6 x 5mm size, etc.
Used in the fields of electronic products, household appliances and more.
High precision mechanism design offers acute operation and long service life.

Specifications:

Contact Type: Momentary Contact

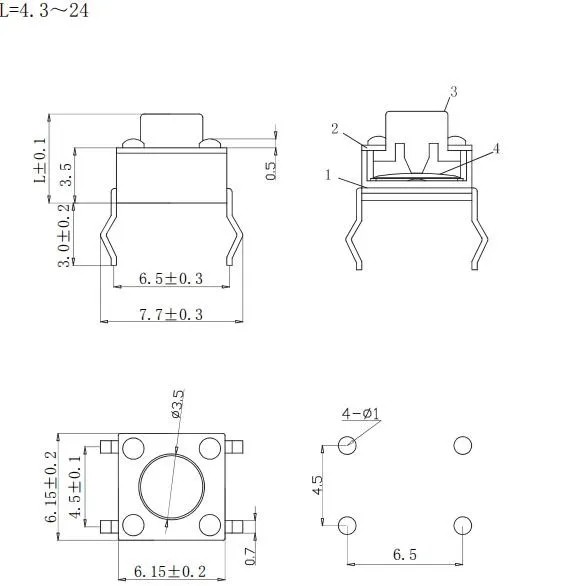

Dimension: 6 x 6 x 5mm / 0.24" x 0.24" x 0.2" (L*W*H)
Button Dia.: 3mm/ 0.12"
Pin Pitch: 5 x 6mm / 0.2" x 0.24" (L*W)
Pin Length: 5mm / 0.2"
Material: Plastic, Metal, Electric Parts
Color: Black, Silver Tone
Current Rating: 50mA
Voltage Rating: 12VDC
Insulating Resistance: >100M ohm 250V DC
Withstand Voltage:  250V AC in 1 minute
Contact Resistance:   <100m ohm
Soldering Temperature:   240 deg C Max in 3 seconds
Mechanical Life:   >100,000 Cycles
Electrical Life:   >100,000 Cycles
Ambient Temperature:   -25 deg C ~ +70 deg C
Ambient Humidity:   <85 %RH
Operating Force:   180 +/- 50 g

Package Includes

1pc x Tactile Tact PushButton 6x6x5mm
