PCF8574T I/O Expander Module

(No reviews yet) Write a Review

SKU:: PEISP55
UPC:
MPN:
Shipping:: Calculated at Checkout

KES400.00

Current Stock:

SOLD OUT

Description
0 Reviews

Description

Description

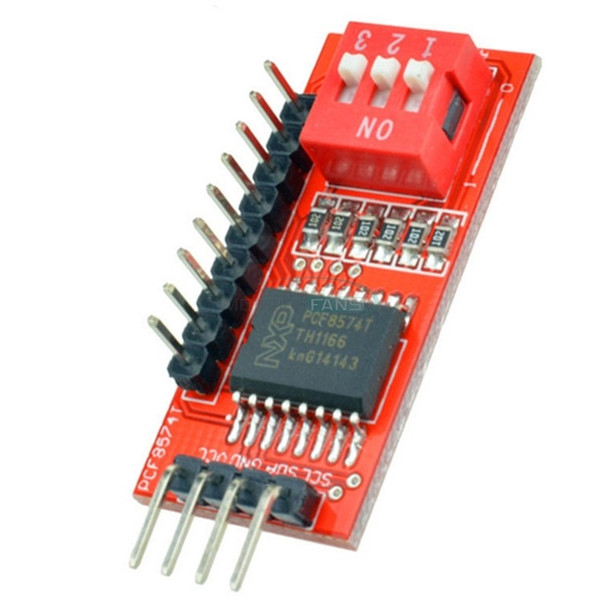

The PCF8574 IO Expansion Board is used as remote 8-bit I/O expander for I2C-bus. Up to 8 PCF8574 IO Expansion Board can be connected to the I2C-bus, providing up to 64 I/O ports. The PCF8574 IO Expansion Board features I2C pinheader on one side, and I2C connector on the opposite side. Hence, it's more flexible to connect the board to your development system. The board also supports I2C cascading, allowing the use of multi module connected to the I2C bus at the same time by connecting the pinheader and connector. I2C address can be set by DIP Switch, when all three DIP Switch set to "ON", address is 0x27

Module function:

This is the I/O extended module, which use for I2C interface, you can use two of the module to extend 8 I/O.

Support cascading, and you can use at most 8 modules to extend 64 I/O at the same time.

Can be changed the address by set toggle switch
PCB Size: 36 x 16mm/1.41*0.62"
Every 2 seconds, make P0-P7 port output High level, Low level, and put 3 toggle switches to ON, the address of module is 0x27

Package Included:

1 x PCF8574T I/O Fr I2C Port Interface Support for Arduino Cascading Extended Module
