FUYU FSL40 Linear Guide sliding Table [400mm Stroke]
(No reviews yet)
Write a Review
![FUYU FSL40 Linear Guide sliding Table [400mm Stroke]](https://cdn11.bigcommerce.com/s-yo2n39m6g3/images/stencil/608x608/products/2654/8248/51C11xAYY2L._SL1200___41207.1668159588.jpg?c=2 "FUYU FSL40 Linear Guide sliding Table [400mm Stroke]")
- SKU:
- PESIN82
- Shipping:
- Calculated at Checkout
![FUYU FSL40 Linear Guide sliding Table [400mm Stroke]](https://cdn11.bigcommerce.com/s-yo2n39m6g3/images/stencil/1280x1280/products/2654/8248/51C11xAYY2L._SL1200___41207.1668159588.jpg?c=2?imbypass=on "FUYU FSL40 Linear Guide sliding Table [400mm Stroke]")
![FUYU FSL40 Linear Guide sliding Table [400mm Stroke]](https://cdn11.bigcommerce.com/s-yo2n39m6g3/images/stencil/1280x1280/products/2654/8250/Hfc491a4e767f4c658a3fc83c4a44025fc__59956.1668159587.jpg?c=2?imbypass=on "FUYU FSL40 Linear Guide sliding Table [400mm Stroke]")
![FUYU FSL40 Linear Guide sliding Table [400mm Stroke]](https://cdn11.bigcommerce.com/s-yo2n39m6g3/images/stencil/1280x1280/products/2654/8249/productimg__17947.1668159541.jpg?c=2?imbypass=on "FUYU FSL40 Linear Guide sliding Table [400mm Stroke]")
![FUYU FSL40 Linear Guide sliding Table [400mm Stroke]](https://cdn11.bigcommerce.com/s-yo2n39m6g3/images/stencil/100x100/products/2654/8248/51C11xAYY2L._SL1200___41207.1668159588.jpg?c=2 "FUYU FSL40 Linear Guide sliding Table [400mm Stroke]")
![FUYU FSL40 Linear Guide sliding Table [400mm Stroke]](https://cdn11.bigcommerce.com/s-yo2n39m6g3/images/stencil/100x100/products/2654/8250/Hfc491a4e767f4c658a3fc83c4a44025fc__59956.1668159587.jpg?c=2 "FUYU FSL40 Linear Guide sliding Table [400mm Stroke]")
![FUYU FSL40 Linear Guide sliding Table [400mm Stroke]](https://cdn11.bigcommerce.com/s-yo2n39m6g3/images/stencil/100x100/products/2654/8249/productimg__17947.1668159541.jpg?c=2 "FUYU FSL40 Linear Guide sliding Table [400mm Stroke]")
Frequently bought together:
Description
Mechanical Dimensions
|
Effective Stroke(mm) |
400 |
| Overall Length(mm) | 599 |
| Overall Height(mm) | 80 |
Load Capacity
Ball screw parameters
| Ball screw model | Screw dia.(mm) | Lead(mm) | Accuracy |
| 1610 | 16 | 10 | C7 |
Motor parameters
| Model No | Step angle | Motor flange size | Motor length | Holding torque | Current | Resistance | Inductance | Rotor Inertia | Lead wire |
| (°) | (mm) | L (mm) | ( N.m) | (A) | ( Ω) | ( mH) | (g.cm⊃2;) | (No.) | |
| FM5756SSD04 | 1.8 | 57 | 56 | 0.93 | 2.0 | 1.32 | 3.19 | 188 | 4 |

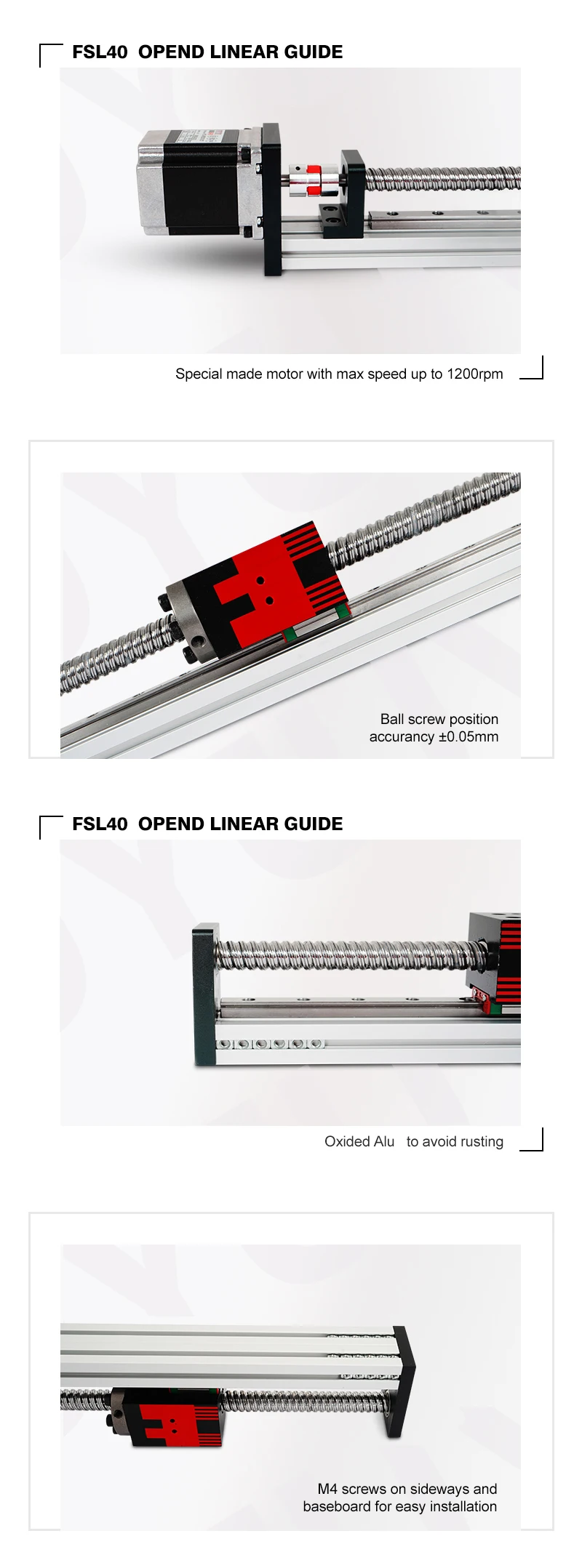

Detailed Images
How to use our linear guide

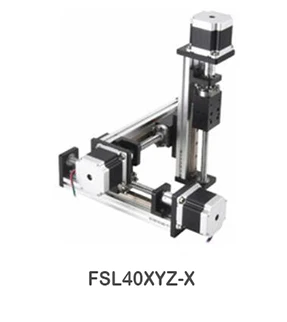

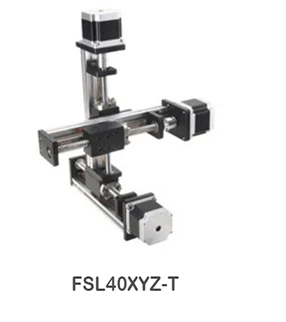

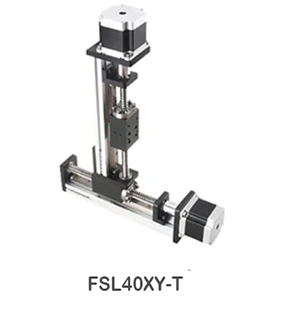

Related XYZ Stage Products
Related Products
Related Products
8mm horizontal 400mm Linear Guide Shaft Rod Slide
RobotLinking
KES1,800.00
Specification: Color:SilverType:PerpendicularLinear Rail Support Inside Diameter 8mm/0.47""(Applicable to the optical axis diameter 8mm)Linear Slide Block Inner Diameter: 8mm/0.47""Cylinder...
SOLD OUT
8mm Vertical 400mm Linear Guide Shaft Rod Slide
RobotLinking
KES1,950.00
Description:
SCS8UU/SK8 400 Optical Linear Ball Bearing Rail Guide Support CNC Set
The linear shaft is widely used in the automatic transmission device, such as industrial automatic...
8mm Horizontal 500mm Linear Guide Shaft Rod Slide
RobotLinking
KES2,000.00
Description:
SCS8UU/SK8600 Optical Linear Ball Bearing Rail Guide Support CNC Set
The linear shaft is widely used in the automatic transmission device, such as industrial automatic...
SOLD OUT
8mm Vertical 500mm Linear Guide Shaft Rod Slide
RobotLinking
KES2,100.00
Specification: Color:SilverType:PerpendicularLinear Rail Support Inside Diameter :8mm/0.47""(Applicable to the optical axis diameter 8mm)Linear Slide Block Inner Diameter: 8mm/0.47""Cylinder...

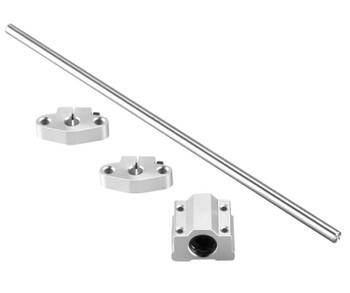

8mm Vertical 600mm Linear Guide Shaft Rod Slide
